Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

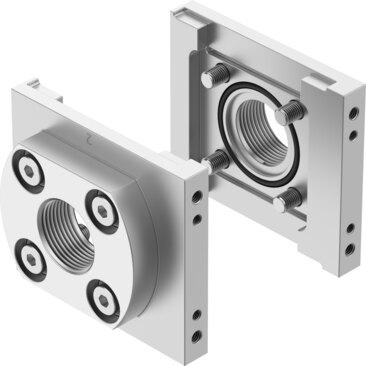

Reference imageConfirm configuration by manufacturer part number.
Festo
1448978
Sub-base PAML-CP-90-HP3-G114
Festo Sub-base PAML-CP-90-HP3-G114, part number 1448978, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 1448978
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1448978.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Size
- 90
- Nominal width DN
- 36
- Series
- L
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 500 g
- Pneumatic connection 1
- G1 1/4
- Pneumatic connection 2
- G1 1/4
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
- Seals material
- NBR
- Material of screws
- High-grade steel
- Official Festo technical specifications
- Size 90 Nominal width DN 36 Series L Operating pressure 0 MPa...5 MPa 0 bar...50 bar Operating medium Compressed air as per ISO 8573-1:2010 [-:-:-] Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -10 °C...60 °C For use in the food industry See supplementary material information Temperature of medium 5 °C...60 °C Ambient temperature 5 °C...60 °C Product weight 500 g Pneumatic connection 1 G1 1/4 Pneumatic connection 2 G1 1/4 Note on materials RoHS compliant Material of sub-base Wrought aluminum alloy Seals material NBR Material of screws High-grade steel 6/5/26 –
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1448978. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
