Festo
1449603
Motor cable NEBM-SM12G8-E-7-Q5-LE6
The Festo 1449603 is an industrial component featuring an M12x1 A-coded straight round plug with 8 pins and 6 occupied wires on the field device side, and an open-ended 6-wire cable on the control side. This shielded assembly operates within a 0 V to 72 V DC range at a nominal 24 V DC, utilizing a 7-meter cable with a 6.2 mm diameter and a 62 mm flexible installation bending radius that is suitable for energy chains and lacks a label holder. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1449603
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1449603.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight

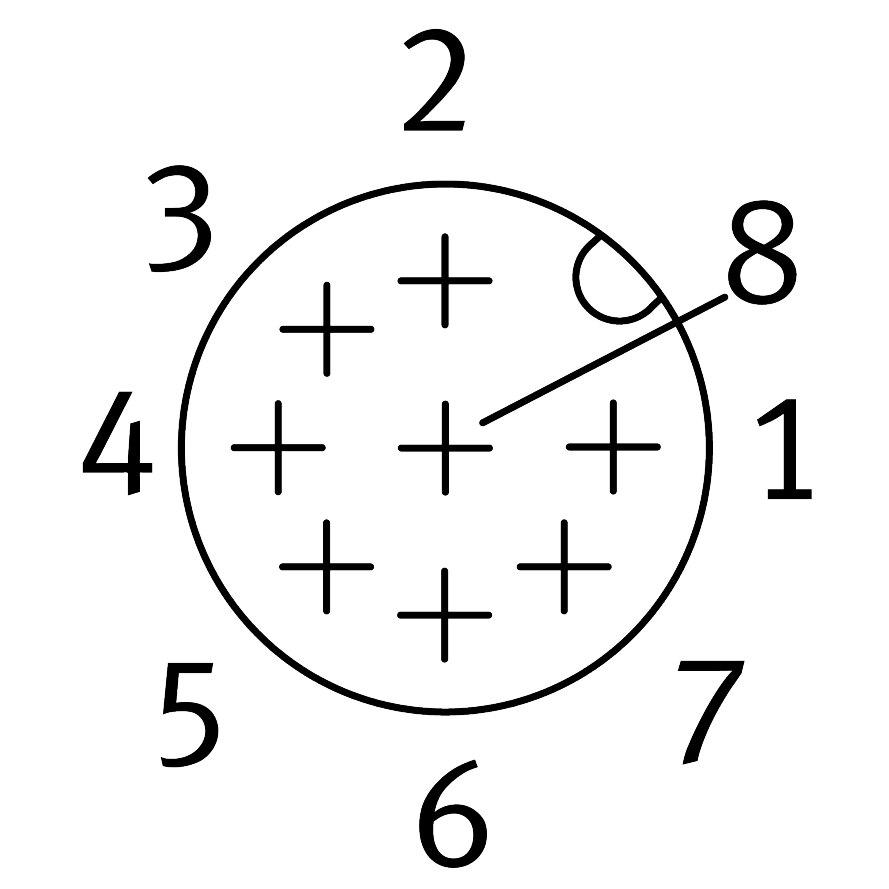

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 6
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...72 V
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 7 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, exible cable installation
- 62 mm
- Cable diameter
- 6.2 mm
- Cable design
- 6 x 0.34 mm²
- Nominal conductor cross section
- 0.34 mm²
- Wire ends
- Wire ferrule
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -40 °C...80 °C
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Official Festo technical specifications
- Cable designation Without label holder Electrical connection 1, function Field device side Electrical connection 1, design Round Electrical connection 1, connection type Plug Electrical connection 1, cable outlet Straight Electrical connection 1, connection technology M12x1 A-coded as per EN 61076-2-101 Electrical connection 1, number of pins/wires 8 Electrical connection 1, occupied pins/wires 6 Electrical connection 2, function Control side Electrical connection 2, connection type Cable Electrical connection 2, connection technology Open end Electrical connection 2, number of pins/wires 6 Electrical connection 2, occupied pins/wires 6 DC operating voltage range 0 V...72 V Nominal operating voltage DC 24 V Shield Yes Cable length 7 m Cable characteristic Suitable for energy chains Bending radius, exible cable installation 62 mm Cable diameter 6.2 mm Cable design 6 x 0.34 mm² Nominal conductor cross section 0.34 mm² Wire ends Wire ferrule Degree of protection IP65 Note on degree of protection In mounted state Ambient temperature -40 °C...80 °C Ambient temperature with exible cable installation -5 °C...80 °C CE marking (see declaration of conformity) As per EU RoHS directive UKCA marking (see declaration of conformity) To UK RoHS instructions LABS (PWIS) conformity VDMA24364-B2-L 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1449603. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
