Name: Festo 1449605 Motor cable NEBM-SM12G8-E- -Q5-LE6
Brand: Festo

Motor cable NEBM-SM12G8-E- -Q5-LE6

The Festo 1449605 is an industrial component featuring an M12x1 A-coded round plug with 8 pins and 6 occupied wires on the field device side, and an open-end cable connection with 6 pins and 6 occupied wires on the control side. This shielded assembly operates within a DC voltage range of 0 V to 72 V at a nominal 24 V DC and includes a straight cable outlet without a label holder. Built with a cable diameter of 6.2 mm and a flexible installation bending radius of 62 mm, the configurable cable length spans 1 m to 25 m and is suitable for energy chains. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1449605
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1449605.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Cable designation: Without label holder
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight

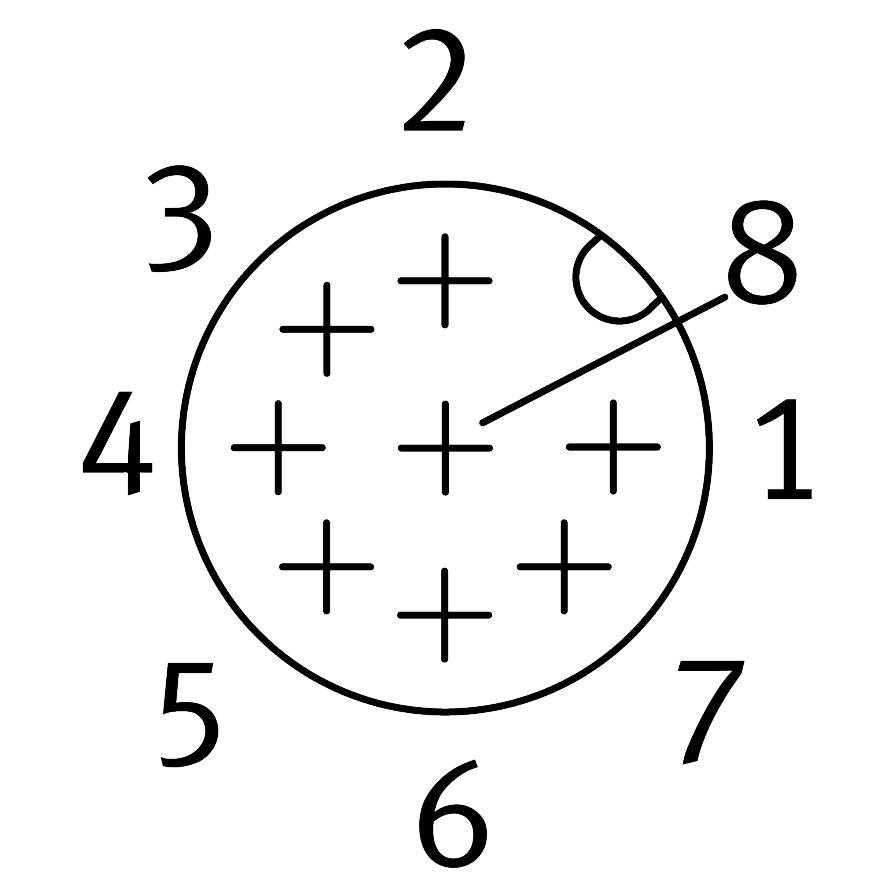

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 6
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 6
Electrical connection 2, occupied pins/wires: 6
DC operating voltage range: 0 V...72 V
Nominal operating voltage DC: 24 V
Shield: Yes
Cable length: 1 m...25 m
Cable characteristic: Suitable for energy chains
Bending radius, exible cable installation: 62 mm
Cable diameter: 6.2 mm
Cable design: 6 x 0.34 mm²
Nominal conductor cross section: 0.34 mm²
Wire ends: Wire ferrule
Degree of protection: IP65
Note on degree of protection: In mounted state
Ambient temperature: -40 °C...80 °C
Ambient temperature with exible cable installation: -5 °C...80 °C
CE marking (see declaration of conformity): As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions
LABS (PWIS) conformity: VDMA24364-B2-L
Official Festo technical specifications: Cable designation Without label holder Electrical connection 1, function Field device side Electrical connection 1, design Round Electrical connection 1, connection type Plug Electrical connection 1, cable outlet Straight Electrical connection 1, connection technology M12x1 A-coded as per EN 61076-2-101 Electrical connection 1, number of pins/wires 8 Electrical connection 1, occupied pins/wires 6 Electrical connection 2, function Control side Electrical connection 2, connection type Cable Electrical connection 2, connection technology Open end Electrical connection 2, number of pins/wires 6 Electrical connection 2, occupied pins/wires 6 DC operating voltage range 0 V...72 V Nominal operating voltage DC 24 V Shield Yes Cable length 1 m...25 m Cable characteristic Suitable for energy chains Bending radius, exible cable installation 62 mm Cable diameter 6.2 mm Cable design 6 x 0.34 mm² Nominal conductor cross section 0.34 mm² Wire ends Wire ferrule Degree of protection IP65 Note on degree of protection In mounted state Ambient temperature -40 °C...80 °C Ambient temperature with exible cable installation -5 °C...80 °C CE marking (see declaration of conformity) As per EU RoHS directive UKCA marking (see declaration of conformity) To UK RoHS instructions LABS (PWIS) conformity VDMA24364-B2-L 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1449605. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
