Festo
1450373
Motor cable NEBM-S1G9-E- -Q5-LE6

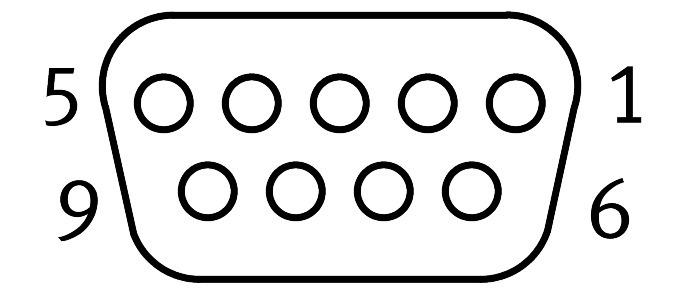

This Festo industrial component, part number 1450373, features a straight square 9-pin Sub-D socket on the field device side with 6 occupied pins and a cable designation without a label holder. On the control side, electrical connection 2 consists of a 6-pin cable with open ends and 6 occupied wires. The shielded assembly operates within a DC voltage range of 0 V to 72 V at a nominal 24 V DC and includes a cable length between 1 m and 25 m, a 6.2 mm cable diameter, and a 62 mm flexible cable installation bending radius suitable for energy chains. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1450373
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1450373.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 9
- Electrical connection 1, occupied pins/wires
- 6
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 6
- Electrical connection 2, occupied pins/wires
- 6
- DC operating voltage range
- 0 V...72 V
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 1 m...25 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, exible cable installation
- 62 mm
- Cable diameter
- 6.2 mm
- Cable design
- 6 x 0.34 mm²
- Nominal conductor cross section
- 0.34 mm²
- Wire ends
- Wire ferrule
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -40 °C...80 °C
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Cable designation Without label holder Electrical connection 1, function Field device side Electrical connection 1, design Square Electrical connection 1, connection type Socket Electrical connection 1, cable outlet Straight Electrical connection 1, connection technology Sub-D Electrical connection 1, number of pins/wires 9 Electrical connection 1, occupied pins/wires 6 Electrical connection 2, function Control side Electrical connection 2, connection type Cable Electrical connection 2, connection technology Open end Electrical connection 2, number of pins/wires 6 Electrical connection 2, occupied pins/wires 6 DC operating voltage range 0 V...72 V Nominal operating voltage DC 24 V Shield Yes Cable length 1 m...25 m Cable characteristic Suitable for energy chains Bending radius, exible cable installation 62 mm Cable diameter 6.2 mm Cable design 6 x 0.34 mm² Nominal conductor cross section 0.34 mm² Wire ends Wire ferrule Degree of protection IP65 Note on degree of protection In mounted state Ambient temperature -40 °C...80 °C Ambient temperature with exible cable installation -5 °C...80 °C CE marking (see declaration of conformity) As per EU RoHS directive UKCA marking (see declaration of conformity) To UK RoHS instructions LABS (PWIS) conformity VDMA24364-B2-L Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1450373. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
