Name: Festo 1450839 Motor cable NEBM-S1G15-E- -Q7-LE6
Brand: Festo

Motor cable NEBM-S1G15-E- -Q7-LE6

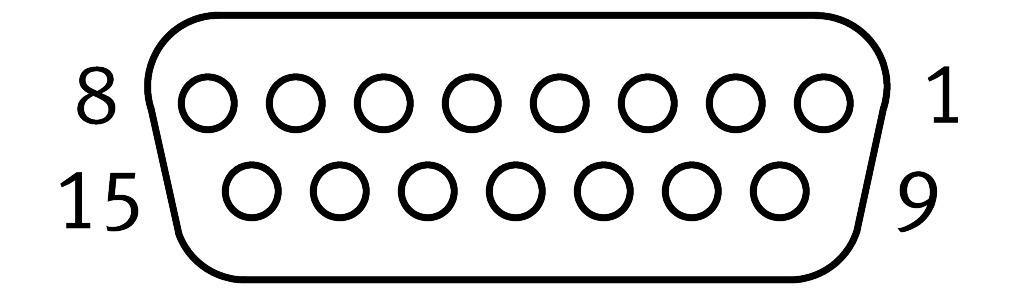

This Festo industrial component, part number 1450839, features a straight Sub-D 15-pin socket with 10 occupied pins on the field device side and an open-end 6-wire connection with 6 occupied pins on the control side. The shielded cable operates at a nominal DC voltage of 24 V within a 0 V to 72 V range, measures 8 mm in diameter, and accommodates lengths between 1 m and 25 m. Built with an energy chain-compatible characteristic and an 80 mm bending radius for flexible installations, the assembly includes no label holder. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1450839
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1450839.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Cable designation: Without label holder
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: Sub-D
Electrical connection 1, number of pins/wires: 15
Electrical connection 1, occupied pins/wires: 10
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 6
Electrical connection 2, occupied pins/wires: 6
DC operating voltage range: 0 V...72 V
Nominal operating voltage DC: 24 V
Shield: Yes
Cable length: 1 m...25 m
Cable characteristic: Suitable for energy chains
Bending radius, exible cable installation: 80 mm
Cable diameter: 8 mm
Cable design: 6 x 0.75 mm²
Nominal conductor cross section: 0.75 mm²
Wire ends: Wire ferrule
Degree of protection: IP65
Note on degree of protection: In mounted state
Ambient temperature: -40 °C...80 °C
Ambient temperature with exible cable installation: -5 °C...80 °C
CE marking (see declaration of conformity): As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Official Festo technical specifications: Cable designation Without label holder Electrical connection 1, function Field device side Electrical connection 1, design Square Electrical connection 1, connection type Socket Electrical connection 1, cable outlet Straight Electrical connection 1, connection technology Sub-D Electrical connection 1, number of pins/wires 15 Electrical connection 1, occupied pins/wires 10 Electrical connection 2, function Control side Electrical connection 2, connection type Cable Electrical connection 2, connection technology Open end Electrical connection 2, number of pins/wires 6 Electrical connection 2, occupied pins/wires 6 DC operating voltage range 0 V...72 V Nominal operating voltage DC 24 V Shield Yes Cable length 1 m...25 m Cable characteristic Suitable for energy chains Bending radius, exible cable installation 80 mm Cable diameter 8 mm Cable design 6 x 0.75 mm² Nominal conductor cross section 0.75 mm² Wire ends Wire ferrule Degree of protection IP65 Note on degree of protection In mounted state Ambient temperature -40 °C...80 °C Ambient temperature with exible cable installation -5 °C...80 °C CE marking (see declaration of conformity) As per EU RoHS directive UKCA marking (see declaration of conformity) To UK RoHS instructions LABS (PWIS) conformity VDMA24364-B2-L Note on materials RoHS compliant 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1450839. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
