Festo
1451407

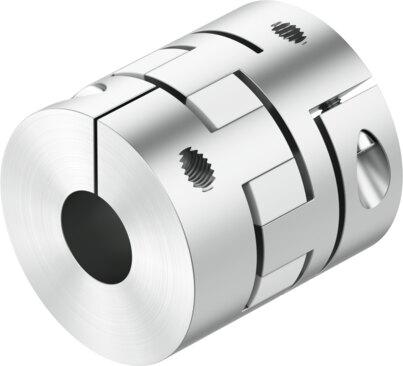

Coupling EAMC-67-62-24-24
This Festo industrial component, part number 1451407, features a size 67 designation with dual 24 mm holders and a nominal length of 62 mm. The unit supports any mounting position, a maximum rotational speed of 4500 rpm, a transferable torque of 143 Nm, and a mass moment of inertia of 280 kgmm² at a product weight of 436 g. Operating and storage temperatures range from -25 °C to 60 °C with 0 to 95% relative air humidity, adhering to VDMA24364-B2-L LABS conformity and RoHS material compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1451407
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1451407.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 24 mm
- Diameter of holder 2
- 24 mm
- Size
- 67
- Nominal length
- 62 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 280 kgmm²
- Transferable torque
- 143 Nm
- Product weight
- 436 g
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Diameter of holder 1 24 mm Diameter of holder 2 24 mm Size 67 Nominal length 62 mm Mounting position Any Max. rotational speed 4500 rpm LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Ambient temperature -25 °C...60 °C Mass moment of inertia 280 kgmm² Transferable torque 143 Nm Product weight 436 g Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1451407. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
