Name: Festo 1451675 Encoder cable NEBM-M12W8-E-2.5-LE8
Brand: Festo

Encoder cable NEBM-M12W8-E-2.5-LE8

This Festo industrial component, part number 1451675, features an angled round M12x1 A-coded socket with 8 pins on the field device side and an open-ended 8-wire cable on the control side. The 2.5-meter shielded cable is suitable for energy chains and operates within an AC and DC voltage range of 0 V to 30 V, with a nominal operating voltage of 24 V. This assembly is supplied without a label holder. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1451675
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1451675.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Cable designation: Without label holder
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

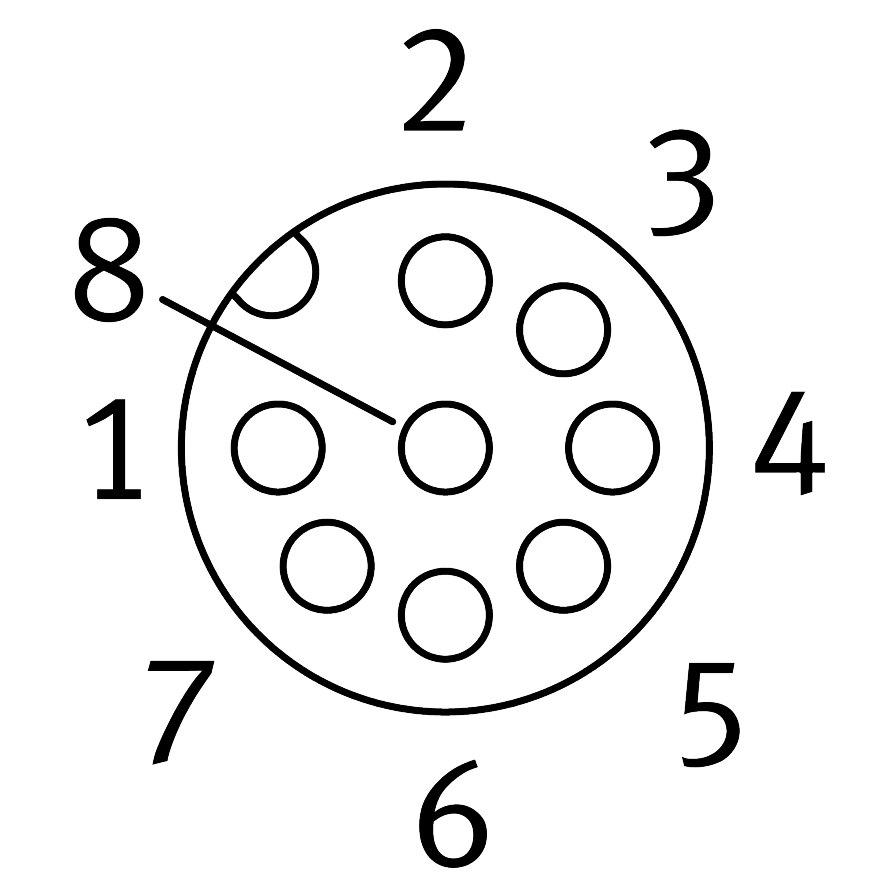

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 8
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 8
Electrical connection 2, occupied pins/wires: 8
DC operating voltage range: 0 V...30 V
Nominal operating voltage DC: 24 V
Operating voltage range AC: 0 V...30 V
Nominal operating voltage AC: 24 V
Shield: Yes
Cable length: 2.5 m
Cable characteristic: Suitable for energy chains
Bending radius, exible cable installation: 68 mm
Cable diameter: 6.8 mm
Cable design: 4 x 2 x 0.14 mm²
Nominal conductor cross section: 0.14 mm²
Wire ends: Wire ferrule
Degree of protection: IP65
Note on degree of protection: In mounted state
Ambient temperature: -40 °C...80 °C
Ambient temperature with exible cable installation: -5 °C...80 °C
CE marking (see declaration of conformity): As per EU RoHS directive

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1451675. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
