Festo
1451964

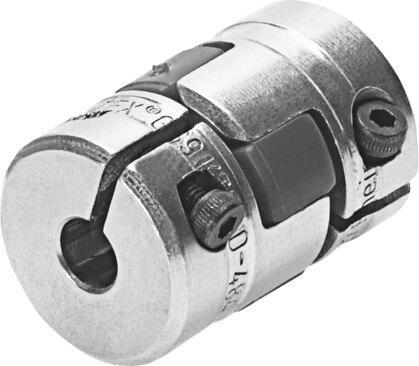

Coupling EAMC-20-30-6-10
The Festo industrial component, part number 1451964, features a size 20 designation with a 30 mm nominal length and a 20 g product weight. This unit accommodates a holder 1 diameter of 6 mm and a holder 2 diameter of 10 mm, supporting an any mounting position alongside a maximum rotational speed of 9000 rpm. It delivers a transferable torque of 2.3 Nm with a mass moment of inertia of 1.06 kgmm², and conforms to VDMA24364-B2-L LABS standards while utilizing RoHS-compliant materials for storage and ambient temperatures spanning -25 °C to 60 °C within 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1451964
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1451964.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 6 mm
- Diameter of holder 2
- 10 mm
- Size
- 20
- Nominal length
- 30 mm
- Mounting position
- Any
- Max. rotational speed
- 9000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 1.06 kgmm²
- Transferable torque
- 2.3 Nm
- Product weight
- 20 g
- Note on materials
- RoHS compliant
