Festo
1452798

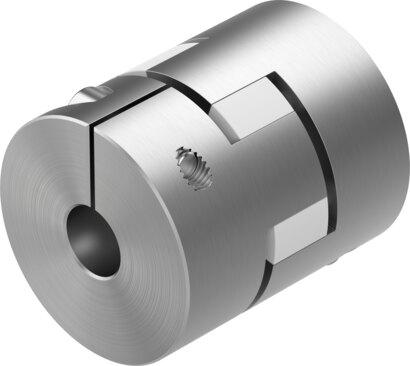

Coupling EAMC-40-66-11-14
Engineered by Festo, part number 1452798 is an industrial component featuring a size 40 designation, a nominal length of 66 mm, and holder diameters of 11 mm and 14 mm. This 139 g assembly delivers a transferable torque of 21 Nm, a mass moment of inertia of 42.3 kgmm², and supports a maximum rotational speed of 6500 rpm with any mounting position. Operating and storage temperatures range from -25 °C to 60 °C within a 0 to 95% relative air humidity range, complying with VDMA24364-B2-L LABS conformity and RoHS material directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1452798
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1452798.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 11 mm
- Diameter of holder 2
- 14 mm
- Size
- 40
- Nominal length
- 66 mm
- Mounting position
- Any
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 42.3 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 139 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1452798. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
