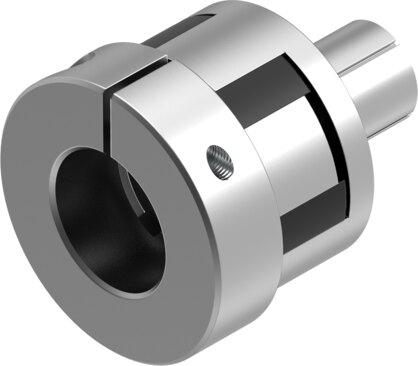

Reference imageConfirm configuration by manufacturer part number.
Festo
1453861
Coupling EAMD-28-22-14-10X12
This Festo industrial component, part number 1453861, features a size 28 designation with a 14 mm diameter for holder 1 and a 10 mm diameter for holder 2. The unit has a nominal length of 22 mm, a product weight of 43 g, and supports any mounting position while delivering a transferable torque of 9 Nm and a maximum rotational speed of 8000 rpm. Operating within ambient and storage temperatures from -25 °C to 60 °C and relative air humidity up to 95%, it maintains a mass moment of inertia of 3.5 kgmm² alongside VDMA24364-B2-L LABS conformity and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1453861
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1453861.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 14 mm
- Diameter of holder 2
- 10 mm
- Size
- 28
- Nominal length
- 22 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 3.5 kgmm²
- Transferable torque
- 9 Nm
- Product weight
- 43 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1453861. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
