Festo
1454238

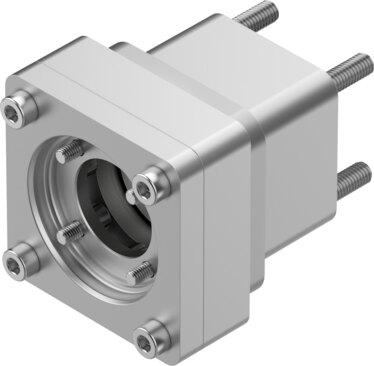

Axial kit EAMM-A-D32-40G
The Festo industrial component, part number 1454238, features a nominal length of 55.5 mm, a product weight of 420 g, and a mass moment of inertia of 5.87 kgmm². This unit transfers a torque of 6.5 Nm up to a maximum rotational speed of 8000 rpm and incorporates actuator interface codes D32 and D32C alongside motor input interface code 40G. Operating within an ambient temperature range of -10 °C to 60 °C, it offers an IP40 degree of protection, VDMA24364-B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1454238
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1454238.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 55.5 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 420 g
- Interface code, actuator
- D32 | D32C
- Interface code, motor in
- 40G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1454238. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
