1454245

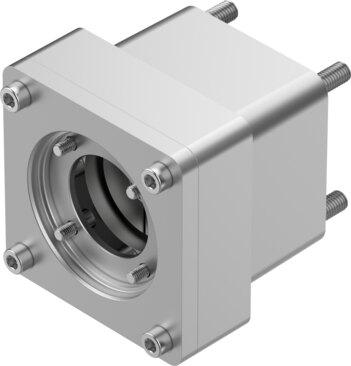

Name: Festo 1454245 Axial kit EAMM-A-D60-60H
Brand: Festo

Axial kit EAMM-A-D60-60H

The Festo part number 1454245 is an industrial component with a nominal length of 74.4 mm, a mass moment of inertia of 34.8 kgmm², and a product weight of 1250 g, featuring an actuator interface code of D60 | D60C and a motor-in interface code of 60H. It accommodates any mounting position, supports a maximum rotational speed of 6000 rpm, and transmits a transferable torque of 21 Nm while meeting RoHS material notes and VDMA24364-B2-L LABS conformity. The unit operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and provides an IP40 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1454245
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1454245.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal length: 74.4 mm
Mounting position: Any
Max. rotational speed: 6000 rpm
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -25 °C...60 °C
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
Mass moment of inertia: 34.8 kgmm²
Transferable torque: 21 Nm
Product weight: 1250 g
Interface code, actuator: D60 | D60C
Interface code, motor in: 60H
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1454245. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
