14544

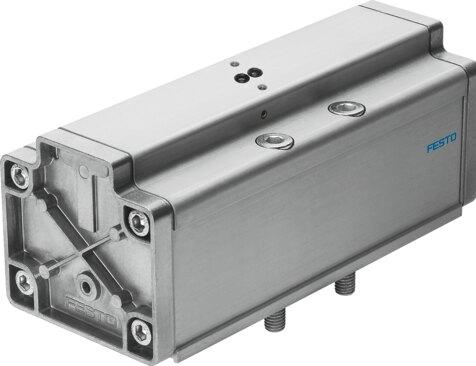

Name: Festo 14544 Air solenoid valve MDH-5/2-3/4-D-4
Brand: Festo

Air solenoid valve MDH-5/2-3/4-D-4

The Festo 14544 is a 5/2-way monostable industrial component utilizing a piston gate valve structural design with an ISO code of 451 and an 18 mm nominal width. Featuring a normal nominal flow rate of 6000 l/min according to DIN 1343 and an operating pressure range of 3 bar to 16 bar, this piloted unit operates via a separately ordered solenoid coil and includes internal pilot air supply. It offers IP65 protection, an adjustable exhaust air function, a soft sealing principle, a pneumatic spring reset method, and a G3/4 or ISO 5599-1 size 4 sub-base pneumatic working port. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 14544
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 14544.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 76 mm
Normal nominal ow rate (normalized to DIN 1343): 6000 l/min
Pneumatic working port: Sub-base, size 4 as per ISO 5599-1 | G3/4
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 3 bar...16 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: IP65
Nominal width: 18 mm
Width dimension: 82 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Non-detenting
ISO code: 451
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Switching time oﬀ: 160 ms
On switching time: 120 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...60 °C
Noise level: 85 dB(A)
Ambient temperature: -10 °C...50 °C
Product weight: 2600 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 14544. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
