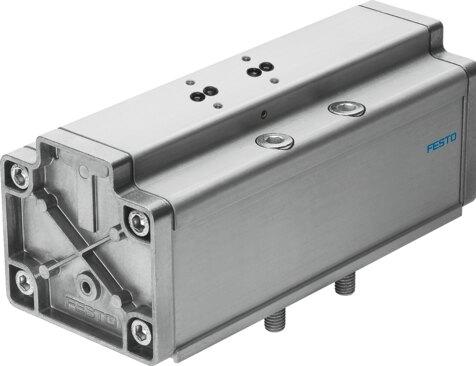

Reference imageConfirm configuration by manufacturer part number.
Festo
14547
Air solenoid valve MDH-5/3E-3/4-D-4
The Festo 14547 is a 76 mm wide electrical piston gate valve featuring a 5/3 exhausted valve function and a normal nominal flow rate of 4800 l/min normalized to DIN 1343. Operating within a pressure range of 3 bar to 16 bar, this piloted component utilizes internal pilot air supply, an ISO 5599-1 size 4 sub-base or G3/4 pneumatic working port, and a mechanical spring reset method with non-detenting manual override. It incorporates an IP65 degree of protection, soft sealing principle, adjustable exhaust air function, and operates at an 18 mm nominal width with solenoid coils ordered separately. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 76 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4800 l/min
- Pneumatic working port
- Sub-base, size 4 as per ISO 5599-1 | G3/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 3 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 18 mm
- Width dimension
- 82 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 457
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 290 ms
- On switching time
- 85 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Noise level
- 85 dB(A)
- Ambient temperature
- -10 °C...50 °C
- Product weight
- 2600 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14547. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
