Festo
1456614

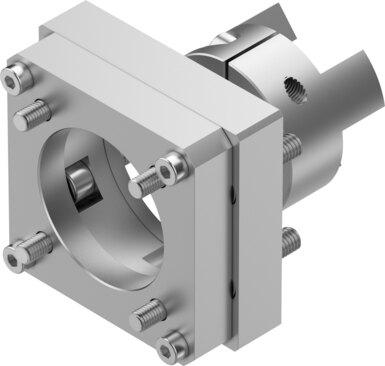

Axial kit EAMM-A-M48-60H
Manufactured by Festo, the part number 1456614 is an industrial component featuring a nominal length of 26 mm, an M48 actuator interface code, and a 60H motor input interface code. This component supports a maximum rotational speed of 6000 rpm, a transferable torque of 21 Nm, a mass moment of inertia of 39 kgmm², and an overall product weight of 320 g with an IP40 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C and a storage temperature range of -25 °C to 60 °C, it accommodates 0 to 95% relative air humidity, complies with VDMA24364-B2-L LABS conformity, features RoHS-compliant materials, and permits mounting in any position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1456614
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1456614.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 26 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 320 g
- Interface code, actuator
- M48
- Interface code, motor in
- 60H
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1456614. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
