Festo
1463504

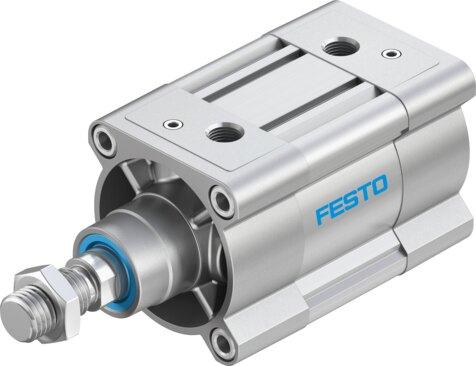

ISO cylinder DSBC-80- -PPVA-N3
The Festo 1463504 is a double-acting industrial component featuring an 80 mm piston diameter, an M20x1.5 piston rod thread, and a variable stroke length between 1 mm and 2800 mm designed to operate within a pressure range of 0.04 MPa to 1.2 MPa. Conforming to ISO 15552, this profile barrel unit utilizes adjustable pneumatic cushioning at both ends, position sensing via proximity switches, and allows for any mounting position with compressed air operating medium. Built with a corrosion resistance class of CRC 2 and an ambient temperature tolerance of -20 °C to 80 °C, the assembly delivers a theoretical retracting force of 2721 N at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1463504
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1463504.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.8 J
- Cushioning length
- 31 mm
- Theoretical force at 6 bar, retracting
- 2721 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Moving mass at 0 mm stroke
- 810 g
- Additional moving mass per 10 mm stroke
- 39 g
- Basic weight with 0 mm stroke
- 2660 g
- Additional weight per 10 mm stroke
- 92 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G3/8
- Note on materials
- RoHS compliant
