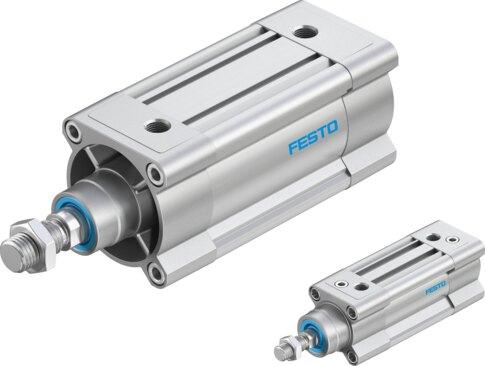

Reference imageConfirm configuration by manufacturer part number.
Festo
1463520
ISO cylinder DSBC-...-100- -
The Festo 1463520 is an industrial component based on the ISO 15552 norm featuring a 100 mm piston diameter, an M20x1.5 or M12 piston rod thread, and a stroke length ranging from 1 mm to 2800 mm with a maximum piston rod angle of rotation of ±0.45 degrees. Its structural design incorporates a profile barrel, piston, and piston rod with position sensing via proximity switch, and includes cushioning options such as elastic cushioning rings/pads, self-adjusting pneumatic end-position cushioning, and adjustable pneumatic cushioning at both ends. It operates in any mounting position and supports multiple variants including unlubricated operation, clamping units, end-position locking, increased chemical resistance, scrapers, and specific temperature ranges. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1463520
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1463520.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2800 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5 | M12
- Max. angle of rotation of the piston rod +/-
- -0.45 deg...0.45 deg
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- For unlubricated operation | Clamping unit attached | End-position locking at both ends | End-position locking with piston rod retracted | End-position locking with piston rod extended | Increased chemical resistance | Protective bellows on the bearing cap | Hard scraper | Stroke adjustment advancing | Weld spatter protection | Extended external thread piston rod | Piston rod with external hexagon | Low friction for balancer applications | Metal scraper | Module for reaching a specic end position in case of a pressure failure | Reinforced piston rod | Uniform, slow movement | Low friction | Through, hollow piston rod | Sensor slots on 3 prole sides | Temperature range 0 to + 150°C | Temperature range -40 to 80°C | Additional PTFE piston guide
- Method of operation clamping unit
- Retracting
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1463520. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
