Festo
1465438

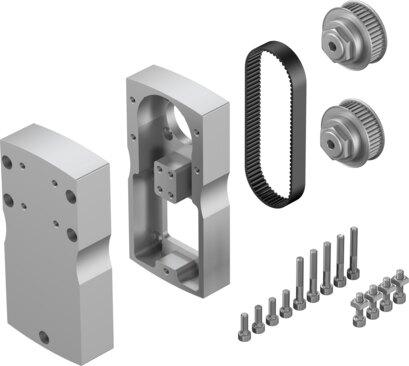

Parallel kit EAMM-U-110-D80-100A-120
The Festo part number 1465438 is an industrial component featuring a size 110 design with an any mounting position and a 1:1 gear ratio. It supports a maximum rotational speed of 5000 rpm, a transferable torque of 25 Nm, a no-load driving torque of 0.3 Nm, and a mass moment of inertia of 799 kgmm², utilizing a D80B actuator interface code alongside a 100A motor-in interface code. Weighing 5070 g, the RoHS compliant unit operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, provides IP40 protection, and meets VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1465438
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1465438.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 110
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 799 kgmm²
- No-load driving torque
- 0.3 Nm
- Transferable torque
- 25 Nm
- Product weight
- 5070 g
- Interface code, actuator
- D80B
- Interface code, motor in
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1465438. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
