Festo
1465541

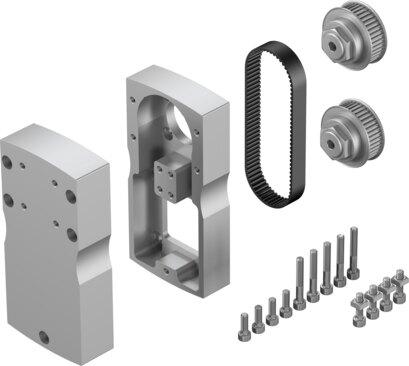

Parallel kit EAMM-U-145-D100-140A-188
Manufactured by Festo as part number 1465541, this industrial component features a size of 145, a 1:1 gear ratio, and a transferable torque of 50 Nm alongside a no-load driving torque of 2 Nm. The unit supports any mounting position, accommodates a maximum rotational speed of 4000 rpm, and includes actuator interface code D100B with motor input interface code 140A. Built with RoHS-compliant materials and VDMA24364 Zone III LABS conformity, the 11800 g assembly operates in ambient temperatures from -10 °C to 60 °C with an IP40 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1465541
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1465541.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 145
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 4000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 2270 kgmm²
- No-load driving torque
- 2 Nm
- Transferable torque
- 50 Nm
- Product weight
- 11800 g
- Interface code, actuator
- D100B
- Interface code, motor in
- 140A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1465541. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
