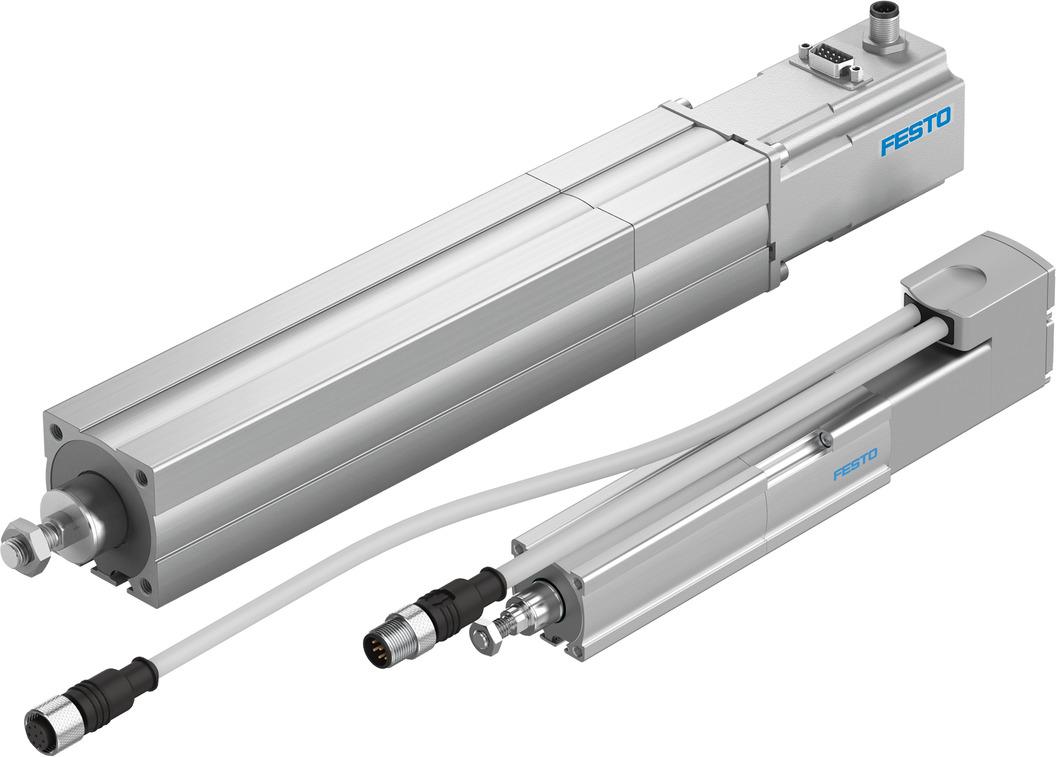

Reference imageConfirm configuration by manufacturer part number.
Festo
1470874
Electric actuator EPCO-25- -
The Festo 1470874 is an electric actuator featuring a ball screw drive and an integrated stepper motor with a size of 25, a 1.8-degree full step angle, and a 3 A motor nominal current at 24 V DC nominal operating voltage. This structural design incorporates a stroke ranging from 50 mm to 300 mm with 0 mm stroke reserve, 0.1 mm reversing backlash, ±0.02 mm repetition accuracy, 10 m/s² maximum acceleration, and a 100% duty cycle for any mounting position. Certified with RCM compliance mark, c UL us Recognized (OL), and CE and UKCA markings per EMC and RoHS directives, it maintains insulation protection class B, a ±5% step angle tolerance, and a maximum piston rod rotation angle of ±1.5 degrees. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1470874
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1470874.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 50 mm...300 mm
- Stroke reserve
- 0 mm
- Reversing backlash
- 0,1 mm
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Max. angle of rotation of the piston rod +/-
- 1.5 deg
- Mounting position
- Any
- Motor type
- Stepper motor
- Structural design
- Electric actuator | with ball screw drive
- Spindle type
- Ball screw drive
- Max. acceleration
- 10 m/s²
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Insulation protection class
- B
- Nominal operating voltage DC
- 24 V
- Motor nominal current
- 3 A
- Certification
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 85 % | Non-condensing
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.0002 J
- Electrical connection technology
- Plug
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1470874. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
