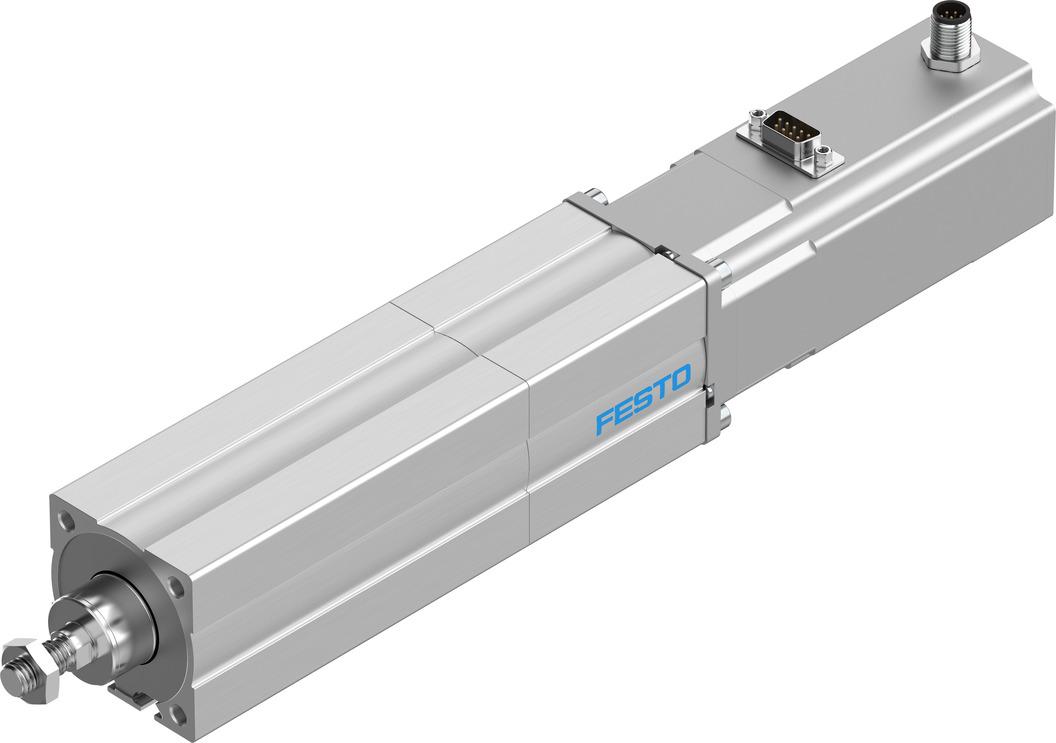

Reference imageConfirm configuration by manufacturer part number.
Festo
1472619
Electric actuator EPCO-40-100-12.7P-ST-E
The Festo 1472619 is an electric actuator with a ball screw drive featuring a size 40 profile and a 100 mm stroke with zero stroke reserve. This component incorporates an integrated stepper motor, an M10x1.25 external piston rod thread, a 12.7 mm screw diameter, and a 12.7 mm/U spindle pitch providing a 1.8 degree full step angle within a ±5% tolerance. It operates with a plain-bearing guide limiting piston rod rotation to ±1 degree, an optical incremental encoder with RS422 TTL A/B channels and zero index, a 0.1 mm reversing backlash, and a maximum acceleration of 10 m/s² in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1472619
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1472619.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 100 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Reversing backlash
- 0,1 mm
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Screw diameter
- 12.7 mm
- Spindle pitch
- 12.7 mm/U
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor
- Structural design
- Electric actuator | with ball screw drive
- Spindle type
- Ball screw drive
- Protection against torsion/guide
- With plain-bearing guide
- Rotor position sensor
- Incremental encoder
- Rotor position sensor interface
- RS422 TTL A/B channels + zero index
- Rotor position sensor measuring principle
- Optical
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.46 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Insulation protection class
- B
- Nominal operating voltage DC
- 24 V
- Motor nominal current
- 4.2 A
- Certification
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
