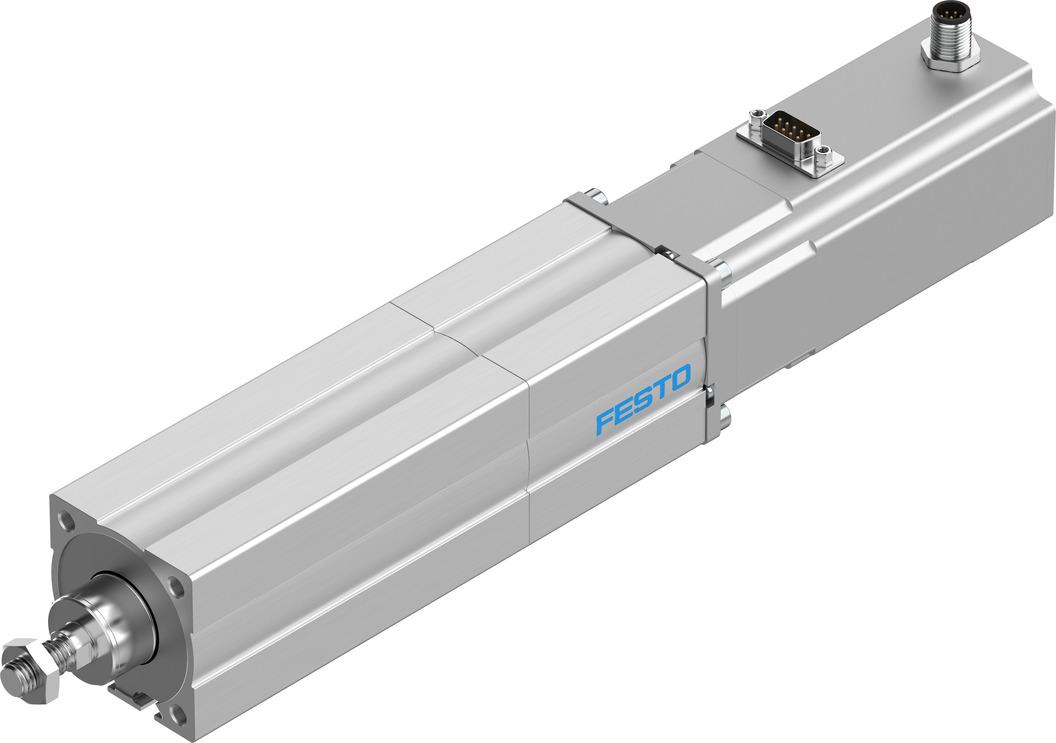

Reference imageConfirm configuration by manufacturer part number.
Festo
1472621
Electric actuator EPCO-40-150-12.7P-ST-E
The Festo 1472621 is an electric actuator with a ball screw drive featuring a size 40 profile, a 150 mm stroke, and a 12.7 mm screw diameter with a 12.7 mm/U spindle pitch. This component includes a stepper motor, an optical incremental encoder with an RS422 TTL A/B channels plus zero index interface, and a plain-bearing guide providing anti-torsion protection with a maximum piston rod rotation angle of +/- 1 deg. Additional technical parameters encompass an M10x1.25 piston rod thread with an external thread end, 0,1 mm reversing backlash, a 1.8 deg full step angle with a +/-5% tolerance, any mounting position, and a maximum acceleration of 10 m/s^2. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1472621
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1472621.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 150 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M10x1.25
- Reversing backlash
- 0,1 mm
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Screw diameter
- 12.7 mm
- Spindle pitch
- 12.7 mm/U
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor
- Structural design
- Electric actuator | with ball screw drive
- Spindle type
- Ball screw drive
- Protection against torsion/guide
- With plain-bearing guide
- Rotor position sensor
- Incremental encoder
- Rotor position sensor interface
- RS422 TTL A/B channels + zero index
- Rotor position sensor measuring principle
- Optical
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.46 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Insulation protection class
- B
- Nominal operating voltage DC
- 24 V
- Motor nominal current
- 4.2 A
- Certification
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1472621. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
