Festo
1472887

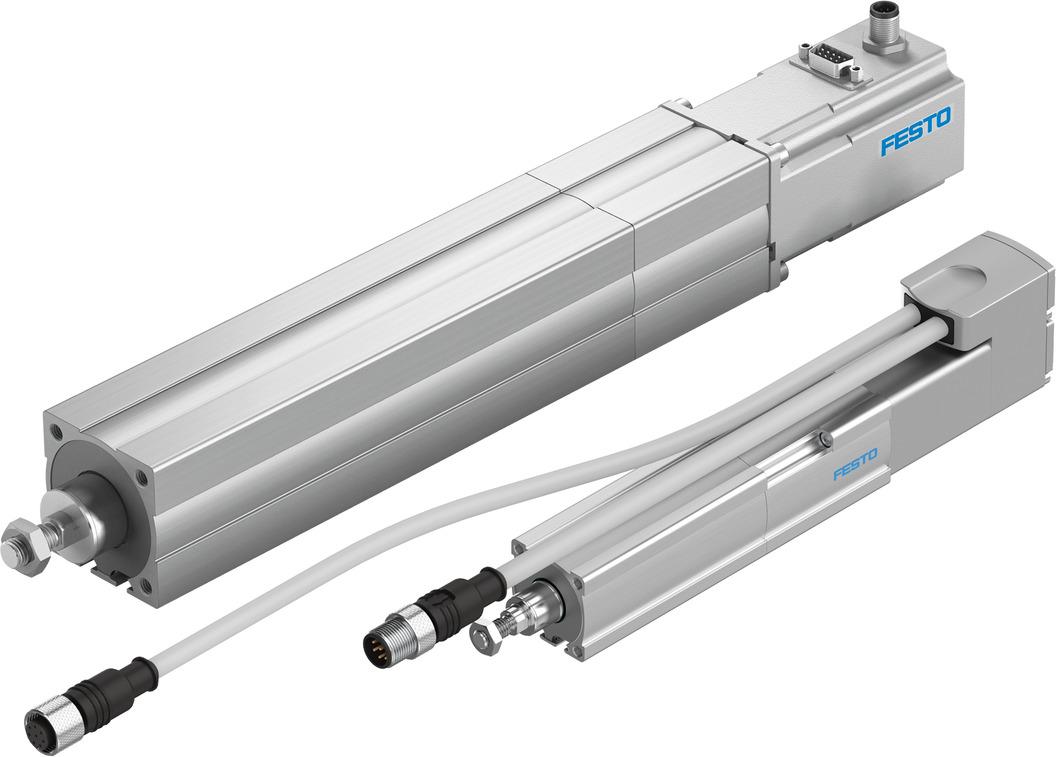

Electric actuator EPCO-40- -
The Festo part number 1472887 is an electric actuator featuring a ball screw drive and an integrated stepper motor with a 1.8-degree full step angle and a ±5% step angle tolerance. This size 40 component operates on a 24 V DC nominal voltage at a 4.2 A motor nominal current, delivering a stroke range of 50 mm to 400 mm with a repetition accuracy of ±0.02 mm and a 100% duty cycle. Certified with RCM compliance and c UL us recognition alongside CE and UKCA markings, the unit supports any mounting position and achieves a maximum acceleration of 10 m/s². Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1472887
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1472887.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 50 mm...400 mm
- Stroke reserve
- 0 mm
- Reversing backlash
- 0,1 mm
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Max. angle of rotation of the piston rod +/-
- 1 deg
- Mounting position
- Any
- Motor type
- Stepper motor
- Structural design
- Electric actuator | with ball screw drive
- Spindle type
- Ball screw drive
- Max. acceleration
- 10 m/s²
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Insulation protection class
- B
- Nominal operating voltage DC
- 24 V
- Motor nominal current
- 4.2 A
- Certification
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 85 % | Non-condensing
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.0004 J
- Electrical connection technology
- Plug
