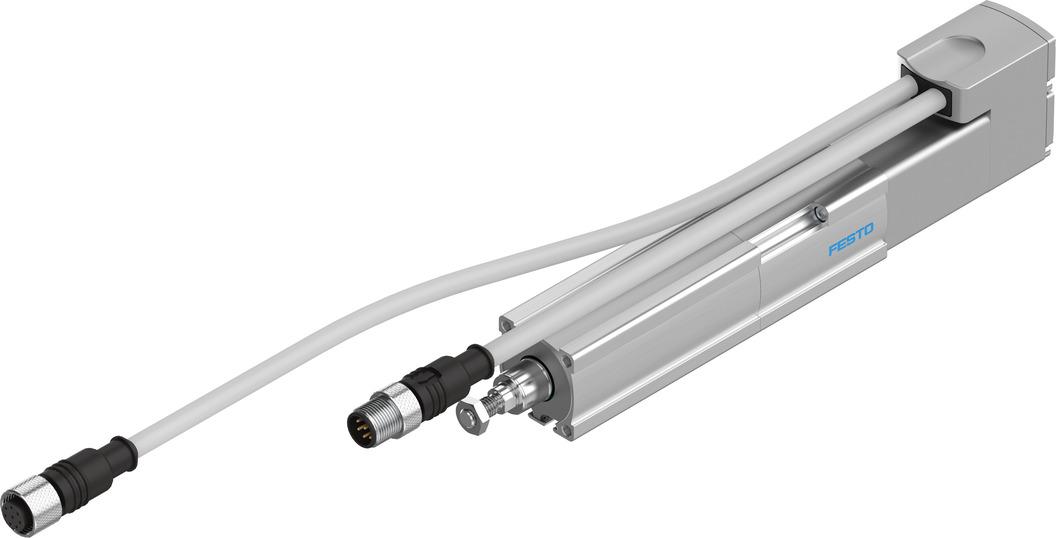

Reference imageConfirm configuration by manufacturer part number.
Festo
1476524
Electric actuator EPCO-16-100-8P-ST-E
The Festo 1476524 is an electric actuator featuring a ball screw drive with a size 16 format, a 100 mm stroke, and an 8 mm screw diameter with an 8 mm/U spindle pitch. This component includes a stepper motor, an external M6 piston rod thread, a plain-bearing guide for torsion protection, and an incremental optical rotor position sensor with an RS422 TTL A/B channels and zero index interface. Operating with a 1.8 degree full step angle at a ±5% tolerance, 0.1 mm reversing backlash, and a maximum acceleration of 10 m/s², the unit permits any mounting position and a maximum piston rod rotation angle of ±2 degrees. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1476524
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1476524.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 100 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M6
- Reversing backlash
- 0,1 mm
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Screw diameter
- 8 mm
- Spindle pitch
- 8 mm/U
- Max. angle of rotation of the piston rod +/-
- 2 deg
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor
- Structural design
- Electric actuator | with ball screw drive
- Spindle type
- Ball screw drive
- Protection against torsion/guide
- With plain-bearing guide
- Rotor position sensor
- Incremental encoder
- Rotor position sensor interface
- RS422 TTL A/B channels + zero index
- Rotor position sensor measuring principle
- Optical
- Max. acceleration
- 10 m/s²
- Max. speed
- 0.3 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Insulation protection class
- B
- Nominal operating voltage DC
- 24 V
- Motor nominal current
- 1.4 A
- Certification
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1476524. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
