Festo
14768

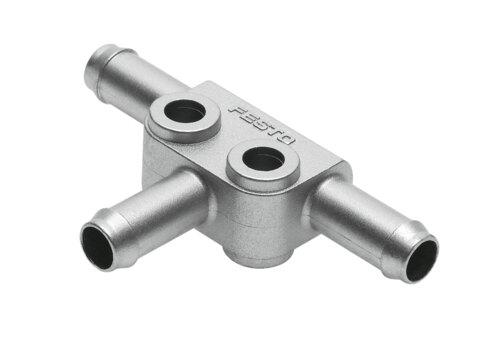

Barbed T-connector FCN-3-PK-3
The Festo 14768 is a die-cast zinc industrial component featuring a nominal width of 2 mm and a pneumatic connection 1 designed for 4 mm outside diameter pneumatic tubing. This RoHS compliant part operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.95 bar to 10 bar and an ambient temperature range of 0 °C to 60 °C. It accommodates VDMA24364-B1/B2-L LABS conformity and permits operation with oil lubrication, which is required for further use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14768
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14768.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm
- Note on materials
- RoHS compliant
- Housing material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14768. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
