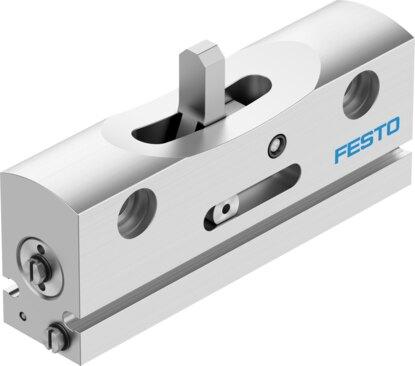

Reference imageConfirm configuration by manufacturer part number.
Festo
1478121
Intermediate position module DADM-EP-G6-16
The Festo part number 1478121 is an industrial component featuring a size 16 structural design with a positively driven motion sequence and position sensing via proximity switch. Operating at 3 bar to 6 bar using compressed air as per ISO 8573-1:2010 [7:-:-], this 340 g unit achieves a repetition accuracy of ±0.02 mm, a maximum pivot time of 150 ms, a max impact velocity of 0.8 m/s, and a max stop force of 1100 N. Constructed with a wrought aluminum alloy housing and PU seals offering CRC 1 corrosion resistance, it utilizes M5 pneumatic connections and mounts via through-hole and centering sleeve in any position within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1478121
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1478121.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Mounting position
- Any
- Structural design
- Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...6 bar
- Max. impact velocity
- 0.8 m/s
- Maximum pivot time
- 150 ms
- Repetition accuracy
- ±0.02 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 1100 N
- Product weight
- 340 g
- Type of mounting
- Via through-hole and centering sleeve
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Seals material
- PU
- Housing material
- Wrought aluminum alloy
- Lever material
- high-alloy stainless steel
