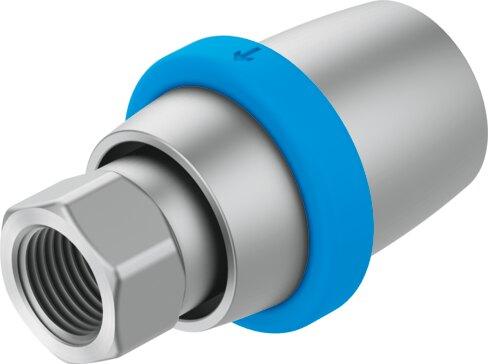

Reference imageConfirm configuration by manufacturer part number.
Festo
1482679
Hand slide valve VBOH-32-G38
The Festo 1482679 is a direct-controlled 3/2-way bistable sleeve valve featuring G3/8 pneumatic connections and a nominal width of 9.9 mm, delivering a normal nominal flow rate of 2201 l/min. Constructed with an anodized wrought aluminum alloy housing utilizing a soft sealing principle, this component operates within a pressure range of -0.95 bar to 12 bar and an ambient temperature range of -10 °C to 80 °C using compressed air meeting ISO 8573-1:2010 [7:4:4]. It features manual actuation for in-line or screw-in mounting in any position, exhibits moderate corrosion stress resistance (CRC 2), and requires cylindrical thread fittings to prevent housing damage. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1482679
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1482679.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Actuation type
- Manual
- Type of mounting
- In-line installation | Screw-in
- Normal nominal ow rate (normalized to DIN 1343)
- 2201 l/min
- Nominal width
- 9.9 mm
- Operating pressure
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar
- Ambient temperature
- -10 °C...80 °C
- Housing material
- Wrought aluminum alloy, anodized
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Width dimension
- 39.5 mm
- Application note
- Please only screw in ttings with a cylindrical thread. Installing tapered | threads can damage the housing and cause the sleeve to jam or | malfunction.
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Sleeve valve
- Type of control
- directly
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...80 °C
- Actuating force
- 41 N
- Product weight
- 70 g
- Material of screwed plug
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1482679. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
