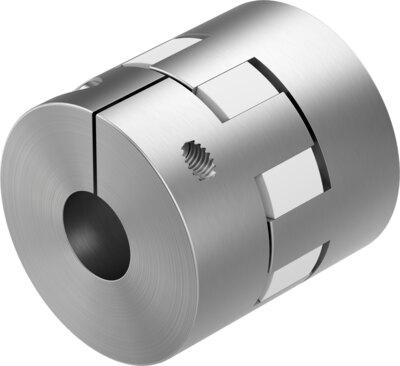

Reference imageConfirm configuration by manufacturer part number.
Festo
1485674
Coupling EAMC-56-58-19-24
The Festo 1485674 is an industrial component featuring a size 56 construction with a nominal length of 58 mm and holder diameters of 19 mm and 24 mm. This unit supports any mounting position, accommodates a maximum rotational speed of 5500 rpm, and transfers a torque of 60 Nm with a mass moment of inertia of 128 kgmm². Built with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, it operates within an ambient and storage temperature range of -25 °C to 60 °C and relative air humidity levels from 0 to 95%. Weighing 277 g, this part is ready for procurement; submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1485674
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1485674.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 19 mm
- Diameter of holder 2
- 24 mm
- Size
- 56
- Nominal length
- 58 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 128 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 277 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1485674. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
