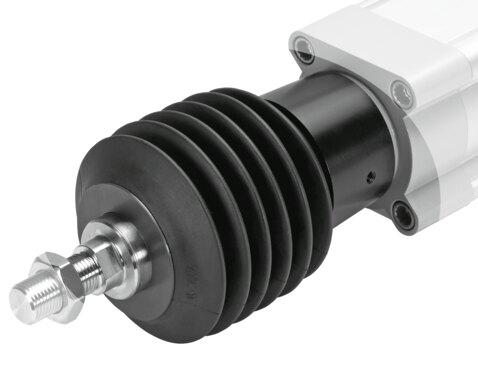

Reference imageConfirm configuration by manufacturer part number.
Festo
1488361
Bellows kit EADB-V2-63-S10-100
The Festo 1488361 is a round industrial component featuring a size 63 designation, a 93 mm outside diameter, a stroke range of 10 mm to 100 mm, and a 43 mm piston rod extension. Built with a protective bellows kit and ducted exhaust, it provides IP65 protection and resistance against dust, chips, oils, grease, and petrol across an ambient temperature range of -10 °C to 80 °C. The assembly utilizes NBR seals and bellows, anodized wrought aluminum alloy adaption parts, and features a CRC 3 high corrosion stress rating along with a moving mass of 79 g and a product weight of 203 g. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1488361
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1488361.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 93 mm
- Size
- 63
- Stroke range
- 10 mm...100 mm
- Piston rod extension
- 43 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -10 °C...80 °C
- Moving mass
- 79 g
- Product weight
- 203 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- Wrought aluminum alloy | Anodized
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1488361. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
