Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

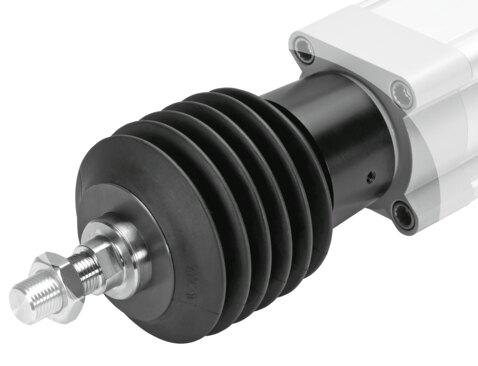

Reference imageConfirm configuration by manufacturer part number.
Festo
1488362
Bellows kit EADB-V2-63-S101-200
The Festo part number 1488362 is a round industrial component featuring a size 63 design, a 93 mm outside diameter, a stroke range of 101 mm to 200 mm, a 68 mm piston rod extension, and a G1/4 pneumatic connection. Built with a protective bellows kit with ducted exhaust, anodized wrought aluminum alloy adaption parts, NBR seals and bellows, and RoHS compliance, this unit delivers IP65 protection and CRC 3 high corrosion stress resistance while withstanding dust, chips, oils, grease, and petrol across an ambient temperature range of -10 °C to 80 °C. Featuring a moving mass of 142 g, a product weight of 265 g, push-fitted and threaded pin mounting, and VDMA24364-B2-L LABS conformity for any mounting position, it is ready for integration. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1488362
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1488362.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 93 mm
- Size
- 63
- Stroke range
- 101 mm...200 mm
- Piston rod extension
- 68 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -10 °C...80 °C
- Moving mass
- 142 g
- Product weight
- 265 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- Wrought aluminum alloy | Anodized
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1488362. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
