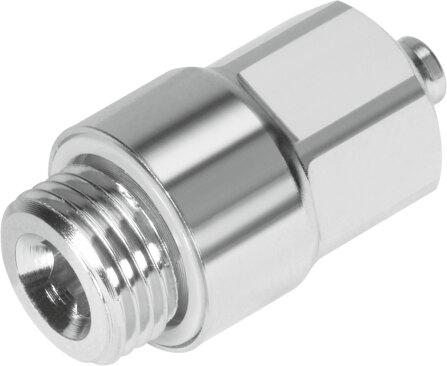

Reference imageConfirm configuration by manufacturer part number.
Festo
1489336
Fitting NPCK-C-D-G14-K10
The Festo 1489336 is a straight industrial component featuring a 6.1 mm nominal width, a sealing ring on the screwed plug, and an overall product weight of 32.9 g. Designed for any mounting position, it operates across a pressure range of -0.095 MPa to 1.2 MPa for compressed air and water, supports lubricated operation, and offers IP69K protection alongside a CRC 4 corrosion resistance class for demanding environments. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1489336
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1489336.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 6.1 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 85 °C | Water vapor: 0 - 0.15 MPa, 0 - 1.5 bar, 0 - 22 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free) | Water vapor
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- For use in the food industry
- See supplementary material information
- Note on temperature of medium
- Water vapor: max. 120 °C
- Degree of protection
- IP69K
- Ambient temperature
- -20 °C...120 °C
- Note on ambient temperature
- Using suitable tubing and maximum operating pressure of the tube, the | N PCK can be used from -40 to 60 °C.
- Nominal tightening torque
- 20 Nm
- Note on the nominal tightening torque
- 7 Nm +/-10% for NPCK to MPA-C
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 32.9 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Material of union nut
- high-alloy stainless steel
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Sealing ring material
- PEEK
