Festo
1489409

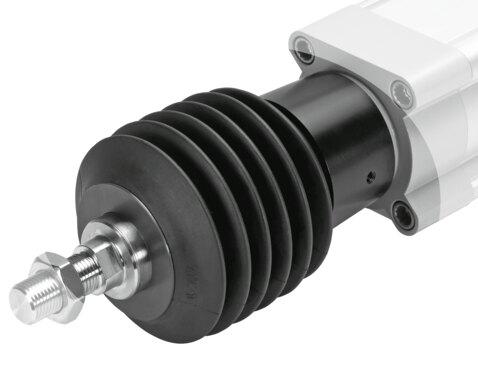

Bellows kit EADB-V2-80-S301-400
The Festo part number 1489409 is a round industrial component of size 80 with a 93 mm outside diameter, a 301 mm to 400 mm stroke range, and a 104 mm piston rod extension. Featuring a protective bellows kit with ducted exhaust, it provides IP65 protection under IEC 60529 and CRC 3 high corrosion resistance, operating within an ambient temperature range of -10 °C to 80 °C. Constructed with NBR seals and bellows alongside anodized wrought aluminum alloy adaption parts, this RoHS-compliant unit resists dust, chips, oils, grease, and petrol. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1489409
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1489409.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 93 mm
- Size
- 80
- Stroke range
- 301 mm...400 mm
- Piston rod extension
- 104 mm
- Design
- Round
- Mounting position
- Any
- Structural design
- Protective bellows kit | With ducted exhaust
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Media resistance
- Dust | Chips | Oils | Grease | Petrol
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -10 °C...80 °C
- Moving mass
- 226 g
- Product weight
- 423 g
- Type of mounting
- Push-tted | With threaded pin
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Adaption parts material
- Wrought aluminum alloy | Anodized
- Seals material
- NBR
- Bellows material
- NBR
- Threaded pin material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1489409. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
