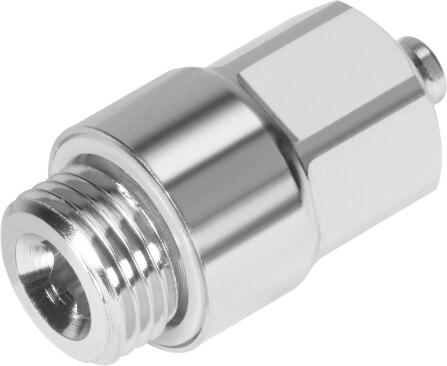

Name: Festo 1489614 Fitting NPCK-C-D-G38-K10
Brand: Festo

Fitting NPCK-C-D-G38-K10

The Festo 1489614 is a straight-design industrial component featuring a 6.2 mm nominal width and a sealing ring on the screwed plug, supporting mounting in any position. It operates across a pressure range of -0.095 MPa to 1.2 MPa for compressed air, with specific ratings for water and water vapor up to 120 °C, and achieves an IP69K degree of protection with a CRC rating of 4 for particularly high corrosion stress. This part weighs 51.15 g, utilizes a nominal tightening torque of 35 Nm, and conforms to VDMA24364 Zone III LABS while being suitable for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1489614
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1489614.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 6.2 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Information on operating pressure: Water: max. 0.6 MPa at 0 - 85 °C | Water vapor: 0 - 0.15 MPa, 0 - 1.5 bar, 0 - 22 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free) | Water vapor
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
For use in the food industry: See supplementary material information
Note on temperature of medium: Water vapor: max. 120 °C
Degree of protection: IP69K
Ambient temperature: -20 °C...120 °C
Note on ambient temperature: Using suitable tubing and maximum operating pressure of the tube, the | N PCK can be used from -40 to 60 °C.
Nominal tightening torque: 35 Nm
Note on the nominal tightening torque: 12 Nm +/-10% for NPCK to MPA-C
Tolerance for nominal tightening torque: ±10%
Product weight: 51.15 g
Pneumatic connection 1: External thread G3/8
Pneumatic connection 2: for pneumatic tubing outside diameter 10 mm
Material of union nut: high-alloy stainless steel
Material of screwed plug: high-alloy stainless steel
Note on materials: RoHS compliant
Sealing ring material: PEEK
