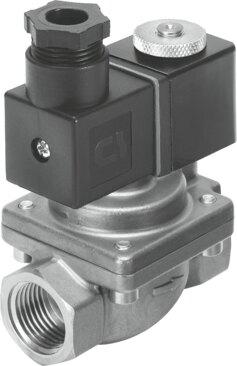

Reference imageConfirm configuration by manufacturer part number.
Festo
1489975
Air solenoid valve VZWP-L-M22C-N14-130-V-1P4-40
The Festo 1489975 is a pilot-controlled piston poppet valve featuring an electrically actuated, soft-sealing 2/2-way closed monostable function with a 13 mm nominal width and non-reversible flow direction. Designed for in-line installation with 1/4 NPT fitting connections and a coil preferably positioned on top, it operates with compressed air, inert gas, or neutral liquids at a nominal fitting pressure of 40 PN and a 0.5 bar differential pressure. The electrical connection utilizes a Type A plug in a rectangular design per EN 175301-803, powered by a 24 V DC, 6.8 W coil with class H insulation, a 100% duty cycle, and permissible voltage fluctuations of +/- 10%. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1489975
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1489975.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pilot-controlled piston poppet valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Coil preferably on top
- Type of mounting
- In-line installation
- Fitting connection
- 1/4 NPT
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 13 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0.05 MPa | 7.25 psi
- Differential pressure
- 0.5 bar
- Coil characteristics
- 24 V DC: 6.8 W
- Insulation class
- H
- Permissible voltage uctuations
- +/- 10%
- Duty cycle
- 100%
- Type of control
- Piloted
- Medium pressure
- 0.05 MPa...4 MPa
