Festo
1489977

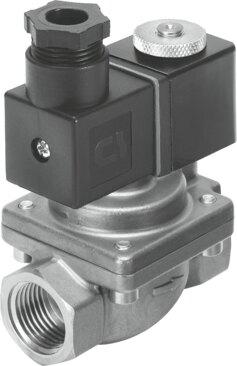

Air solenoid valve VZWP-L-M22C-N12-130-V-1P4-40
The Festo 1489977 is a pilot-controlled piston poppet valve featuring a 2/2-way closed monostable function, soft sealing principle, and a 13 mm nominal width with 1/2 NPT in-line installation. Designed for electrical actuation via a piloted 24 V DC 6.8 W coil with insulation class H and a 100% duty cycle, it operates with non-reversible flow for compressed air, inert gas, and neutral liquids up to a nominal pressure of 40 PN and a 0.5 bar differential pressure. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1489977
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1489977.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pilot-controlled piston poppet valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Coil preferably on top
- Type of mounting
- In-line installation
- Fitting connection
- 1/2 NPT
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 13 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0.05 MPa | 7.25 psi
- Differential pressure
- 0.5 bar
- Coil characteristics
- 24 V DC: 6.8 W
- Insulation class
- H
- Permissible voltage uctuations
- +/- 10%
- Duty cycle
- 100%
- Type of control
- Piloted
- Medium pressure
- 0.05 MPa...4 MPa
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1489977. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
