Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

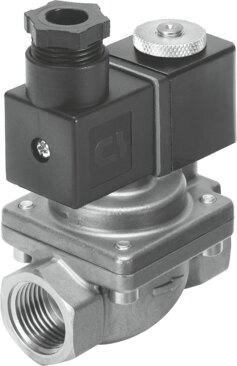

Reference imageConfirm configuration by manufacturer part number.
Festo
1489991
Air solenoid valve VZWP-L-M22C-N38-130-3AP4-40
The Festo 1489991 is a pilot-controlled piston poppet valve featuring a 2/2-way, closed, monostable function with soft sealing and a 13 mm nominal width. Configured for electrical actuation with a 230 V AC coil operating at 50/60 Hz, this in-line mounted component includes a 3/8 NPT fitting connection and a Type A rectangular electrical connection per EN 175301-803. It handles compressed air, inert gas, and neutral liquids with a non-reversible flow direction, a 40 PN nominal pressure, and a 100% duty cycle. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1489991
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1489991.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pilot-controlled piston poppet valve
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Coil preferably on top
- Type of mounting
- In-line installation
- Fitting connection
- 3/8 NPT
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 13 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0.05 MPa | 7.25 psi
- Differential pressure
- 0.5 bar
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 10.5 VA, holding power 7.6 VA
- Insulation class
- H
- Permissible voltage uctuations
- +/- 10%
- Duty cycle
- 100%
- Type of control
- Piloted
- Medium pressure
- 0.05 MPa...4 MPa
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1489991. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
