Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

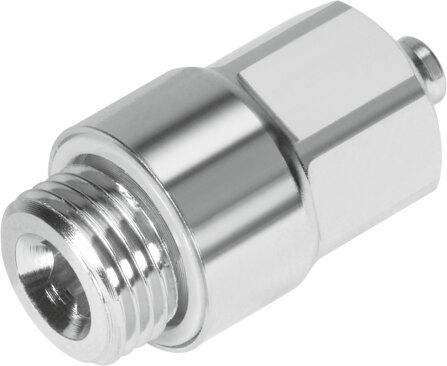

Reference imageConfirm configuration by manufacturer part number.
Festo
1490383
Fitting NPCK-C-D-G18-K8
The Festo part number 1490383 is a straight industrial component featuring a 4.9 mm nominal width, a sealing ring on the screwed plug, and an IP69K degree of protection. Operating across a pressure range of -0.95 bar to 12 bar and temperatures from -20 °C to 120 °C, this 13.4 g component accommodates compressed air, liquid water, and water vapor with a CRC 4 corrosion resistance class. It features a nominal tightening torque of 6.5 Nm and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1490383
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1490383.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.9 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 85 °C | Water vapor: 0 - 0.15 MPa, 0 - 1.5 bar, 0 - 22 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free) | Water vapor
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- For use in the food industry
- See supplementary material information
- Note on temperature of medium
- Water vapor: max. 120 °C
- Degree of protection
- IP69K
- Ambient temperature
- -20 °C...120 °C
- Note on ambient temperature
- Using suitable tubing and maximum operating pressure of the tube, the | N PCK can be used from -40 to 60 °C.
- Nominal tightening torque
- 6.5 Nm
- Note on the nominal tightening torque
- 4 Nm +/-10% for NPCK to MPA-C
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 13.4 g
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Material of union nut
- high-alloy stainless steel
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Sealing ring material
- PEEK
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1490383. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
