Name: Festo 1492072 Intermediate position module DADM-EP-G6-10
Brand: Festo

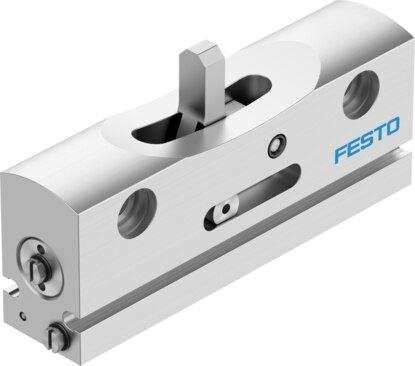

Intermediate position module DADM-EP-G6-10

Engineered with a positively driven motion sequence, the Festo industrial component part number 1492072 features a size 10 wrought aluminum alloy housing with PU seals and operates at pressures between 3 bar and 6 bar using compressed air as per ISO 8573-1:2010 [7:-:-]. This 154 g unit achieves a repetition accuracy of ±0.02 mm, a maximum impact velocity of 0.8 m/s, a maximum pivot time of 150 ms, and a maximum stop force of 500 N, supporting mounting in any position via through-hole and centering sleeve. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1492072
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1492072.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 10
Mounting position: Any
Structural design: Positively driven motion sequence
Position sensing: Via proximity switch
Operating pressure: 3 bar...6 bar
Max. impact velocity: 0.8 m/s
Maximum pivot time: 150 ms
Repetition accuracy: ±0.02 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: 0 °C...60 °C
Max. stop force: 500 N
Product weight: 154 g
Type of mounting: Via through-hole and centering sleeve
Pneumatic connection: M3
Note on materials: RoHS compliant
Seals material: PU
Housing material: Wrought aluminum alloy
Lever material: high-alloy stainless steel
Official Festo technical specifications: Size 10 Mounting position Any Structural design Positively driven motion sequence Position sensing Via proximity switch Operating pressure 3 bar...6 bar Max. impact velocity 0.8 m/s Maximum pivot time 150 ms Repetition accuracy ±0.02 mm Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Max. stop force 500 N Product weight 154 g Type of mounting Via through-hole and centering sleeve Pneumatic connection M3 Note on materials RoHS compliant Seals material PU Housing material Wrought aluminum alloy Lever material high-alloy stainless steel 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1492072. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
