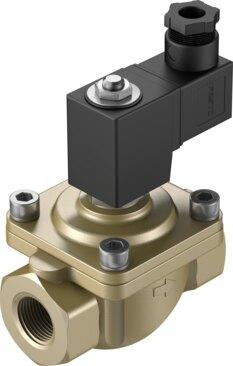

Reference imageConfirm configuration by manufacturer part number.
Festo
1492161
Air solenoid valve VZWF-B-L-M22C-N34-275-1P4-6
The Festo 1492161 is a force pilot operated diaphragm valve featuring a soft sealing principle and an electrical actuation type operating on 24 V DC at 11.0 W with permissible voltage fluctuations of +/- 10%. Designed for in-line installation with a 3/4 NPT fitting connection and a 27.5 mm nominal width, this non-reversible 2/2-way closed monostable valve handles compressed air, inert gas, mineral oil, water, and neutral liquids across a medium pressure range of 0 bar to 6 bar. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1492161
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1492161.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve | Force pilot operated
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Magnet, upright
- Type of mounting
- In-line installation
- Fitting connection
- 3/4 NPT
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 27.5 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0 MPa | 0 psi
- Differential pressure
- 0 bar
- Coil characteristics
- 24 V DC: 11.0 W
- Permissible voltage uctuations
- +/- 10%
- Medium pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
- Official Festo technical specifications
- Structural design Diaphragm valve Force pilot operated Actuation type Electrical Sealing principle Soft Mounting position Magnet, upright Type of mounting In-line installation Fitting connection 3/4 NPT Electrical connection Type A Plug As per EN 175301-803 Rectangular design Nominal width 27.5 mm Valve function 2/2-way, closed, monostable Manual override None Flow direction Non-reversible Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other ow media on request Nominal pressure of tting PN 40 Pressure difference 0 MPa 0 psi Differential pressure 0 bar Coil characteristics 24 V DC: 11.0 W Permissible voltage uctuations +/- 10% Medium pressure 0 MPa...0.6 MPa 0 bar...6 bar 0 psi...87 psi 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1492161. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
