1492226

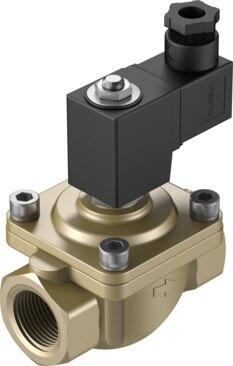

Name: Festo 1492226 Air solenoid valve VZWF-B-L-M22C-G1-275-E-2AP4-6
Brand: Festo

Air solenoid valve VZWF-B-L-M22C-G1-275-E-2AP4-6

This Festo 1492226 industrial component features a force pilot-operated diaphragm valve design with a soft sealing principle and a G1 fitting connection for in-line installation. The electrically actuated 2/2-way monostable valve operates with a 27.5 mm nominal width, supporting a medium pressure range of 0 bar to 6 bar for compressed air, inert gas, mineral oil, water, and neutral liquids. It includes an EN 175301-803 Type A rectangular plug connection and requires a 110 V AC 50/60 Hz power supply with a holding power of 16.0 VA. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1492226
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1492226.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Diaphragm valve | Force pilot operated
Actuation type: Electrical
Sealing principle: Soft
Mounting position: Magnet, upright
Type of mounting: In-line installation
Fitting connection: G1
Electrical connection: Type A | Plug | As per EN 175301-803 | Rectangular design
Nominal width: 27.5 mm
Valve function: 2/2-way, closed, monostable
Manual override: None
Flow direction: Non-reversible
Medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
Nominal pressure of tting PN: 40
Pressure diﬀerence: 0 MPa | 0 psi
Diﬀerential pressure: 0 bar
Coil characteristics: 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA
Permissible voltage uctuations: +/- 10%
Medium pressure: 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
Official Festo technical specifications: Structural design Diaphragm valve Force pilot operated Actuation type Electrical Sealing principle Soft Mounting position Magnet, upright Type of mounting In-line installation Fitting connection G1 Electrical connection Type A Plug As per EN 175301-803 Rectangular design Nominal width 27.5 mm Valve function 2/2-way, closed, monostable Manual override None Flow direction Non-reversible Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other ow media on request Nominal pressure of tting PN 40 Pressure diﬀerence 0 MPa 0 psi Diﬀerential pressure 0 bar Coil characteristics 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA Permissible voltage uctuations +/- 10% Medium pressure 0 MPa...0.6 MPa 0 bar...6 bar 0 psi...87 psi 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1492226. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
