Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

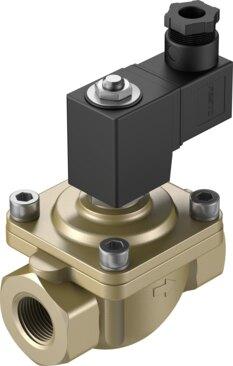

Reference imageConfirm configuration by manufacturer part number.
Festo
1492321
Air solenoid valve VZWF-B-L-M22C-G34-275-E-3AP4-6
The Festo 1492321 is an electrically actuated force pilot-operated diaphragm valve featuring a soft sealing principle and a 2/2-way, closed, monostable valve function with a 27.5 mm nominal width and G3/4 fitting connection. Designed for in-line installation with an upright magnet mounting position, this component handles a medium pressure range of 0 bar to 6 bar across compressed air, inert gas, mineral oil, water, and neutral liquids with a nominal pressure PN of 40. It operates on a 230 V AC 50/60 Hz electrical supply through a Type A plug connection conforming to EN 175301-803, exhibiting an initial power of 18.0 VA and a holding power of 15.0 VA with permissible voltage fluctuations of +/- 10%. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1492321
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1492321.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve | Force pilot operated
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Magnet, upright
- Type of mounting
- In-line installation
- Fitting connection
- G3/4
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 27.5 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0 MPa | 0 psi
- Differential pressure
- 0 bar
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
- Permissible voltage uctuations
- +/- 10%
- Medium pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1492321. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
