Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

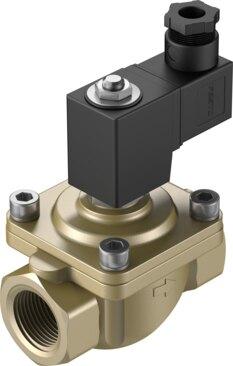

Reference imageConfirm configuration by manufacturer part number.
Festo
1492322
Air solenoid valve VZWF-B-L-M22C-G1-275-E-3AP4-6
The Festo part number 1492322 is an electrically actuated diaphragm valve featuring a force pilot-operated structural design and a soft sealing principle. Configured as a 2/2-way closed monostable valve with a 27.5 mm nominal width and G1 fitting connection, it operates with a non-reversible flow direction and handles a medium pressure range of 0 bar to 6 bar. This component supports compressed air, inert gas, mineral oil, water, and neutral liquids, driven by a 230 V AC coil drawing 18.0 VA initial power and 15.0 VA holding power. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1492322
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1492322.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve | Force pilot operated
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Magnet, upright
- Type of mounting
- In-line installation
- Fitting connection
- G1
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 27.5 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0 MPa | 0 psi
- Differential pressure
- 0 bar
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
- Permissible voltage uctuations
- +/- 10%
- Medium pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1492322. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
