1492337

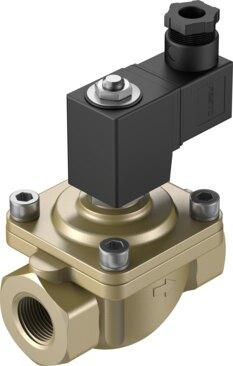

Name: Festo 1492337 Air solenoid valve VZWF-B-L-M22C-G34-275-V-3AP4-6
Brand: Festo

Air solenoid valve VZWF-B-L-M22C-G34-275-V-3AP4-6

The Festo part number 1492337 is an electrical, force pilot-operated diaphragm valve featuring a soft sealing principle and a 2/2-way, closed, monostable valve function with a 27.5 mm nominal width. Designed for in-line installation with a G3/4 fitting connection and upright magnet mounting position, this component operates with a 230 V AC (50/60 Hz) coil requiring 18.0 VA initial power and 15.0 VA holding power through a Type A plug electrical connection per EN 175301-803. It handles a medium pressure range of 0 bar to 6 bar (0 psi to 87 psi) with a PN 40 nominal pressure fitting and zero differential pressure across compatible media including compressed air, inert gas, mineral oil, water, and neutral liquids. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1492337
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1492337.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Diaphragm valve | Force pilot operated
Actuation type: Electrical
Sealing principle: Soft
Mounting position: Magnet, upright
Type of mounting: In-line installation
Fitting connection: G3/4
Electrical connection: Type A | Plug | As per EN 175301-803 | Rectangular design
Nominal width: 27.5 mm
Valve function: 2/2-way, closed, monostable
Manual override: None
Flow direction: Non-reversible
Medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
Nominal pressure of tting PN: 40
Pressure diﬀerence: 0 MPa | 0 psi
Diﬀerential pressure: 0 bar
Coil characteristics: 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
Permissible voltage uctuations: +/- 10%
Medium pressure: 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1492337. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
