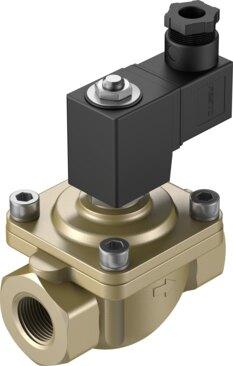

Reference imageConfirm configuration by manufacturer part number.
Festo
1492353
Air solenoid valve VZWF-B-L-M22C-N34-275-3AP4-6
The Festo part number 1492353 is an electrically actuated force pilot-operated diaphragm valve featuring a soft sealing principle and a 2/2-way, closed, monostable valve function with a 27.5 mm nominal width. Designed for in-line installation with a 3/4 NPT fitting connection and upright magnet mounting position, it operates with a PN 40 nominal pressure and supports a medium pressure range of 0 bar to 6 bar alongside a 0 bar differential pressure for compressed air, inert gas, mineral oil, water, and neutral liquids. Electrical connection is achieved via a Type A plug of rectangular design adhering to EN 175301-803, powered by 230 V AC at 50/60 Hz with an initial power of 18.0 VA, holding power of 15.0 VA, and permissible voltage fluctuations of +/- 10% without manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1492353
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1492353.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve | Force pilot operated
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Magnet, upright
- Type of mounting
- In-line installation
- Fitting connection
- 3/4 NPT
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 27.5 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0 MPa | 0 psi
- Differential pressure
- 0 bar
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
- Permissible voltage uctuations
- +/- 10%
- Medium pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1492353. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
