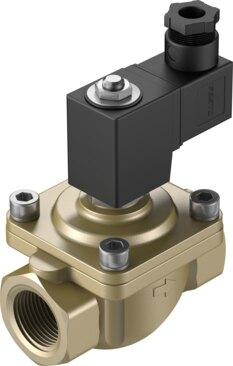

Reference imageConfirm configuration by manufacturer part number.
Festo
1492370
Air solenoid valve VZWF-B-L-M22C-N1-275-E-3AP4-6
The Festo 1492370 is an electrically actuated diaphragm valve utilizing a force pilot operated design and a soft sealing principle for in-line installation with a 1 NPT fitting connection. Featuring a 2/2-way, closed, monostable valve function with a nominal width of 27.5 mm, this component operates with a 230 V AC (50/60 Hz) coil drawing 18.0 VA initial power and 15.0 VA holding power under permissible voltage fluctuations of +/- 10%. It accommodates a nominal pressure PN of 40 and a medium pressure range of 0 bar to 6 bar (0 psi to 87 psi) with a differential pressure of 0 bar, utilizing a Type A rectangular plug electrical connection as per EN 175301-803 and a magnet, upright mounting position. The media compatibility includes compressed air as per ISO 8573-1:2010 [7:-:-], inert gas, mineral oil, water, neutral liquids, and other flow media on request, with non-reversible flow direction and no manual override. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1492370
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1492370.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve | Force pilot operated
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Magnet, upright
- Type of mounting
- In-line installation
- Fitting connection
- 1 NPT
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 27.5 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0 MPa | 0 psi
- Differential pressure
- 0 bar
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
- Permissible voltage uctuations
- +/- 10%
- Medium pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1492370. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
