Festo
1492386

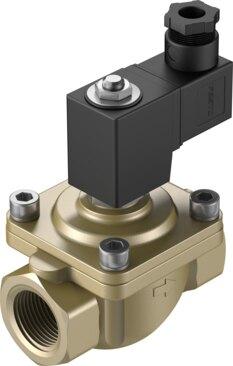

Air solenoid valve VZWF-B-L-M22C-N1-275-V-3AP4-6
The Festo 1492386 is an electrically actuated force pilot operated diaphragm valve featuring a soft sealing principle and a 1 NPT fitting connection for in-line installation in an upright magnet mounting position. This 2/2-way closed monostable valve operates with a nominal width of 27.5 mm, a nominal pressure PN of 40, and a medium pressure range of 0 bar to 6 bar, accommodating compressed air, inert gas, mineral oil, water, and neutral liquids. It utilizes a Type A plug electrical connection per EN 175301-803 and operates on 230 V AC (50/60 Hz) with an initial power of 18.0 VA and holding power of 15.0 VA within +/- 10% permissible voltage fluctuations. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1492386
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1492386.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Diaphragm valve | Force pilot operated
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Magnet, upright
- Type of mounting
- In-line installation
- Fitting connection
- 1 NPT
- Electrical connection
- Type A | Plug | As per EN 175301-803 | Rectangular design
- Nominal width
- 27.5 mm
- Valve function
- 2/2-way, closed, monostable
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gas | Mineral oil | Water | Neutral liquids | Other ow media on request
- Nominal pressure of tting PN
- 40
- Pressure difference
- 0 MPa | 0 psi
- Differential pressure
- 0 bar
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
- Permissible voltage uctuations
- +/- 10%
- Medium pressure
- 0 MPa...0.6 MPa | 0 bar...6 bar | 0 psi...87 psi
