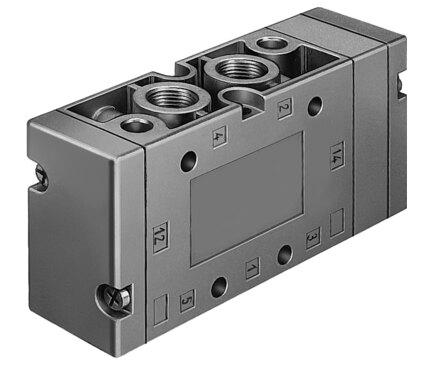

Reference imageConfirm configuration by manufacturer part number.
Festo
14952
Pneumatic valve VL-5-3/8-B
The Festo 14952 is a 5/2-way monostable industrial component utilizing a piston gate valve structural design with direct control and a mechanical spring reset. This pneumatic unit features a 40 mm width, a nominal width of 12 mm, G3/8 pneumatic working ports, and a normal nominal flow rate of 2000 l/min with adjustable exhaust air function and a soft sealing principle. Operating at pressures from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and external pilot pressures from 0.25 MPa to 1 MPa (2.5 bar to 10 bar), the device accommodates reversible flow direction, positive overlap, and any mounting position without manual override. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14952
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14952.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Width
- 40 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2000 l/min
- Pneumatic working port
- G3/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 12 mm
- Width dimension
- 41 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- Max. switching frequency
- 3 Hz
- Switching time off
- 16 ms
- On switching time
- 4 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
