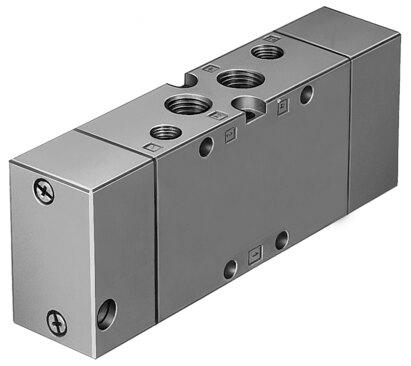

Reference imageConfirm configuration by manufacturer part number.
Festo
14953
Pneumatic valve J-5-3/8-B
The Festo 14953 is a bistable 5/2-way pneumatic industrial component featuring a piston gate valve structural design and a 40 mm width dimension. Operating with compressed air as per ISO 8573-1:2010 [7:4:4], this directly controlled unit delivers a normal nominal flow rate of 2000 l/min across an operating pressure range of -0.9 bar to 10 bar through G3/8 working ports. It incorporates an adjustable exhaust air function, soft sealing principle, external pilot air supply, and reversible flow direction with a maximum switching frequency of 3 Hz and a 3 ms changeover time. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14953
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14953.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Pneumatic
- Width
- 40 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2000 l/min
- Pneumatic working port
- G3/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Nominal width
- 12 mm
- Width dimension
- 41 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Max. switching frequency
- 3 Hz
- Changeover time
- 3 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 550 g
- Type of mounting
- Alternatively: | On PR manifold rail | With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14953. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
