Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

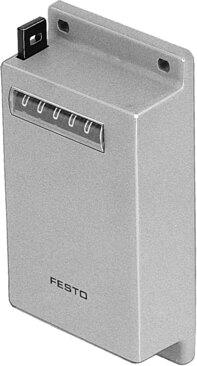

Reference imageConfirm configuration by manufacturer part number.
Festo
14992
Pneumatic counter PZA-A-B
The Festo part number 14992 is a mechanical sequence counter with a pneumatic actuator featuring a 6-digit display and dual manual key or pneumatic signal reset methods. This component operates within an input pressure range of 2 bar to 8 bar, requiring an actuator response pressure of 0.6 ± 0.2 bar and functioning with compressed air conforming to ISO 8573-1:2010 [7:4:4] without oil lubrication capability. Rated for ATEX Zones 1, 2, 21, and 22, the 155 g unit mounts via through-hole and operates in ambient temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 14992
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 14992.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Mechanical sequence counter with pneumatic actuator
- Reset method
- Manual key or pneumatic signal
- Display
- 6 digit
- Actuator drop-off pressure
- 0.2 ± 0.1 bar
- Resetting cutout pressure
- 0.15 ± 0.1 bar
- Actuator response pressure
- 0.6 ± 0.2 bar
- Response pressure resetting
- 0.6 ± 0.2 bar
- Operating pressure
- 2 bar...8 bar
- Minimum resetting pressure
- 2 bar
- Min. pulse length for actuator
- 10 ms
- Min. pulse length for reset
- 180 ms
- Minimum pause period for actuator
- 15 ms
- Minimum pause period for reset
- 50 ms
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 155 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Housing material
- ABS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 14992. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
