Festo
1499402

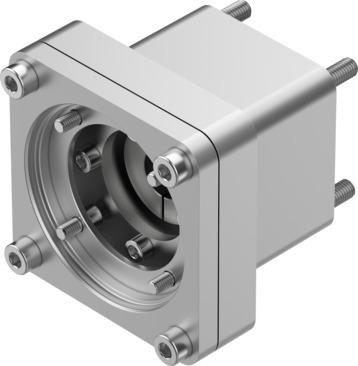

Axial kit EAMM-A-D60-80G
The Festo 1499402 industrial component features a nominal length of 87.4 mm and a product weight of 1350 g, supporting any mounting position with a degree of protection rated at IP40. This unit accommodates a maximum rotational speed of 6000 rpm, a transferable torque of 17 Nm, and a mass moment of inertia of 34.8 kgmm², utilizing actuator interface codes D60 and D60C alongside motor-in interface code 80G. Built in compliance with VDMA24364-B2-L LABS conformity and RoHS material regulations, it operates within an ambient temperature range of -10 °C to 60 °C and withstands storage temperatures from -25 °C to 60 °C at a relative air humidity of 0 to 95%. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1499402
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1499402.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 87.4 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 1350 g
- Interface code, actuator
- D60 | D60C
- Interface code, motor in
- 80G
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1499402. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
